HP Agilent
AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA
AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA
Regular price
£31.20 GBP
Regular price
Sale price
£31.20 GBP
Unit price
per
Mounting Style: Chassis Mount
Brand: HP Agilent
Primary Voltage Rating (AC): 240v AC
Type: Power Transformer
Current Conversion: AC to AC
Number of Sockets: 1
MPN: Does Not Apply
Maximum Operating Frequency: 50 Hz
Secondary Voltage Rating (AC): 17v 0 17v , 8v 0 8v , 25v 40v
Secondary Current Rating: 2A , 5A , 1A , 300mA
Conversion Function: Step-down
Ac mains Power transformer Taken out of Fully Working Hp Agilent 8922 GSM Test Gear
primary has taps for 115v or 240v AC
Secondaries are
17v 0 17v used for the 2 x 15v DC at 2A
8v 0 8v used for 2x 5v DC at 5A
25v AC 1A
40b AC 300mA
109mm x 135mm x 90mm and weights about 6.3kg
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns

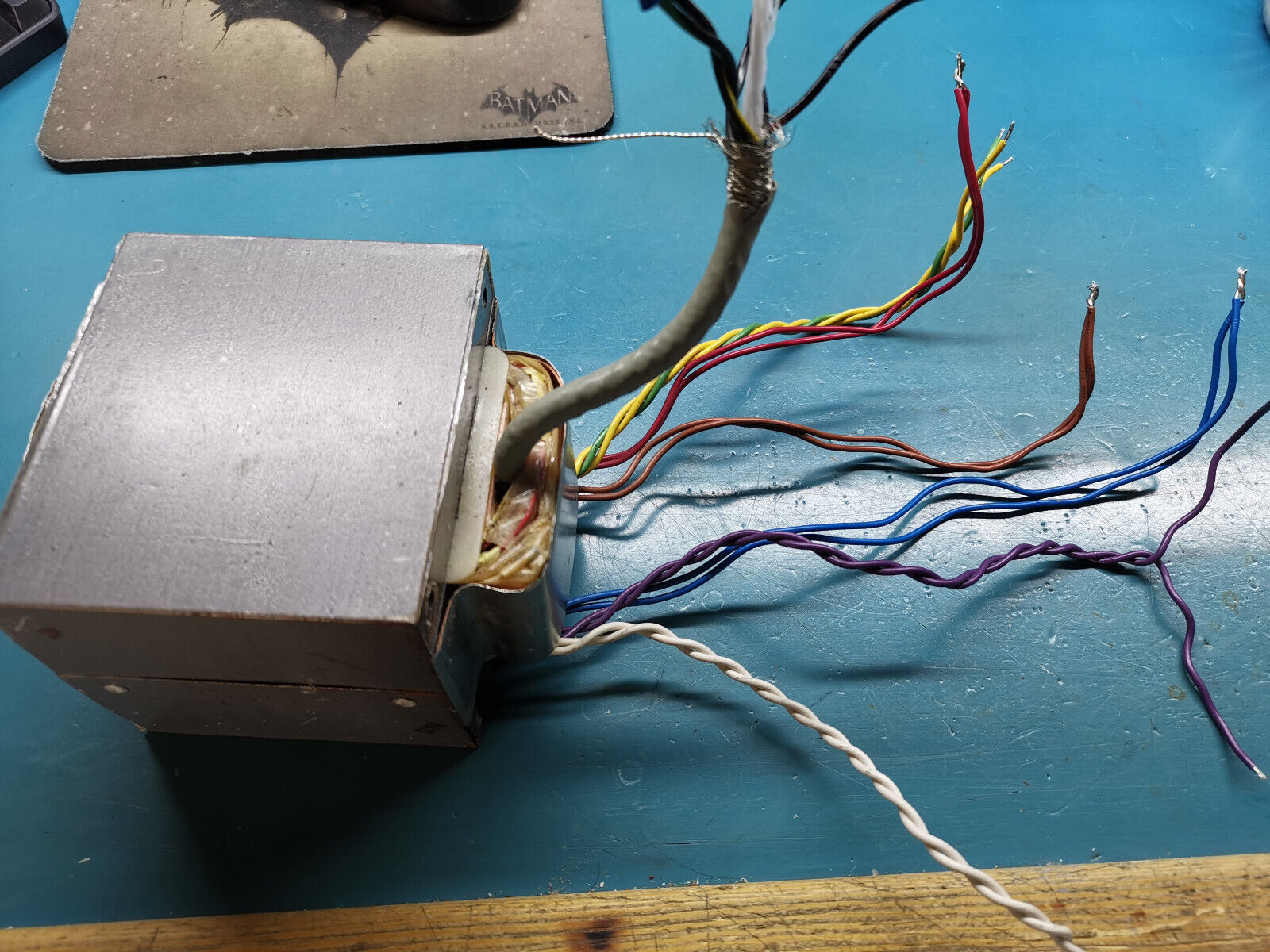

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_6dff1f58-be9a-4767-a893-0956d419c0d0.jpg?v=1684154570&width=1445)

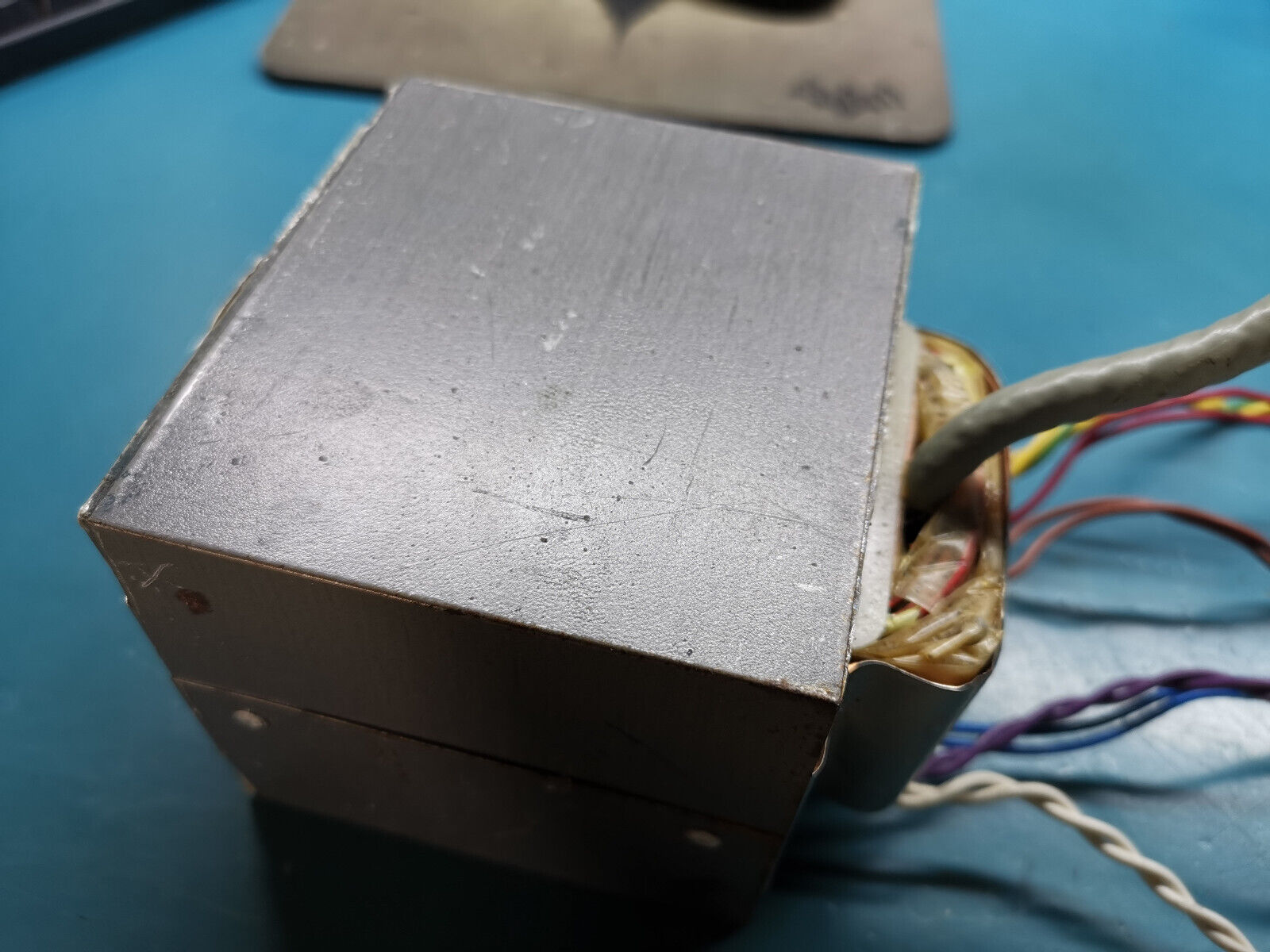

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_efd1ba74-8815-4b90-a91f-fc03be77fe67.jpg?v=1684154570&width=1445)

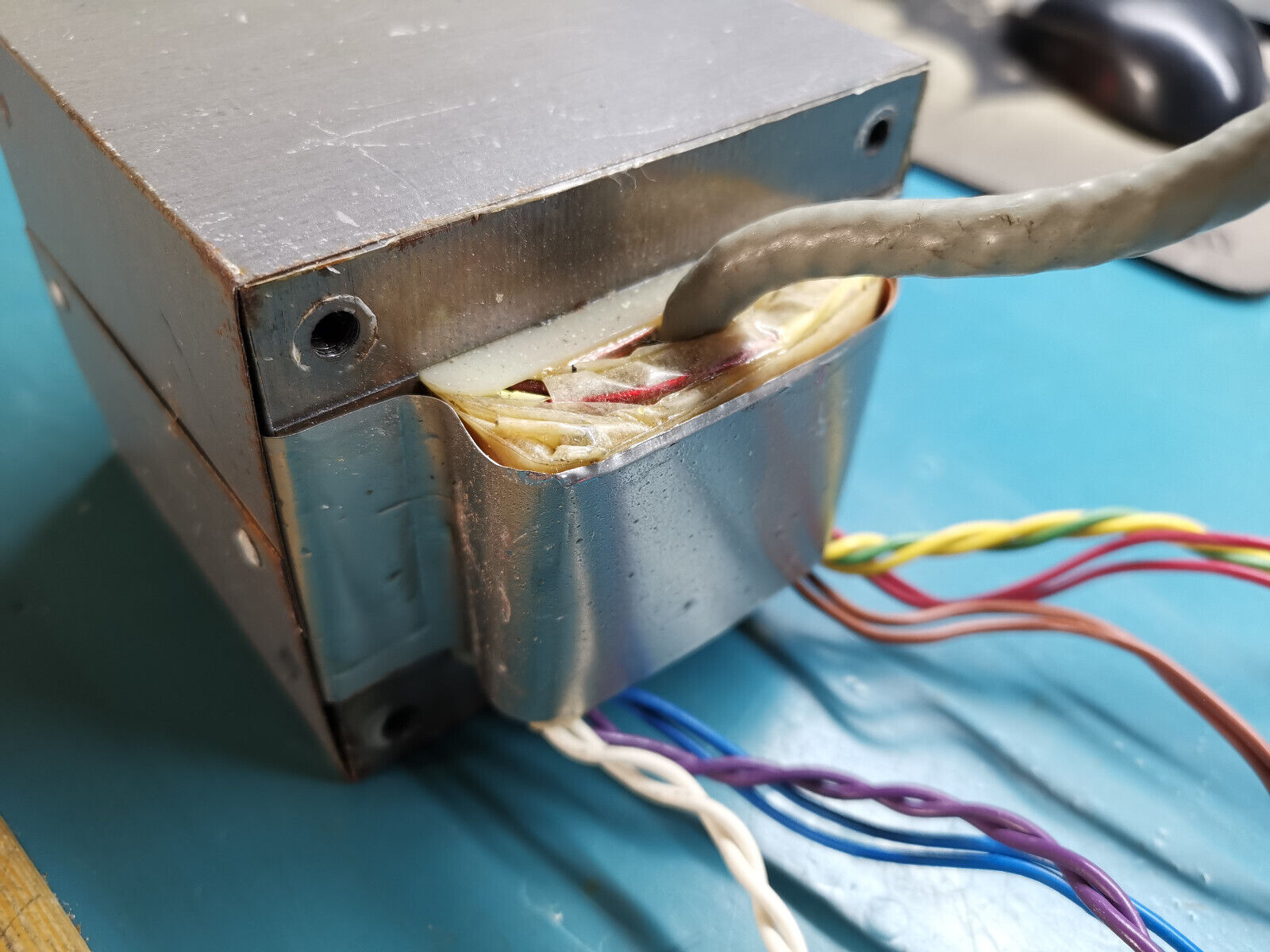

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_f70a5499-5db2-4994-8970-fde8d3577ae7.jpg?v=1684154570&width=1445)

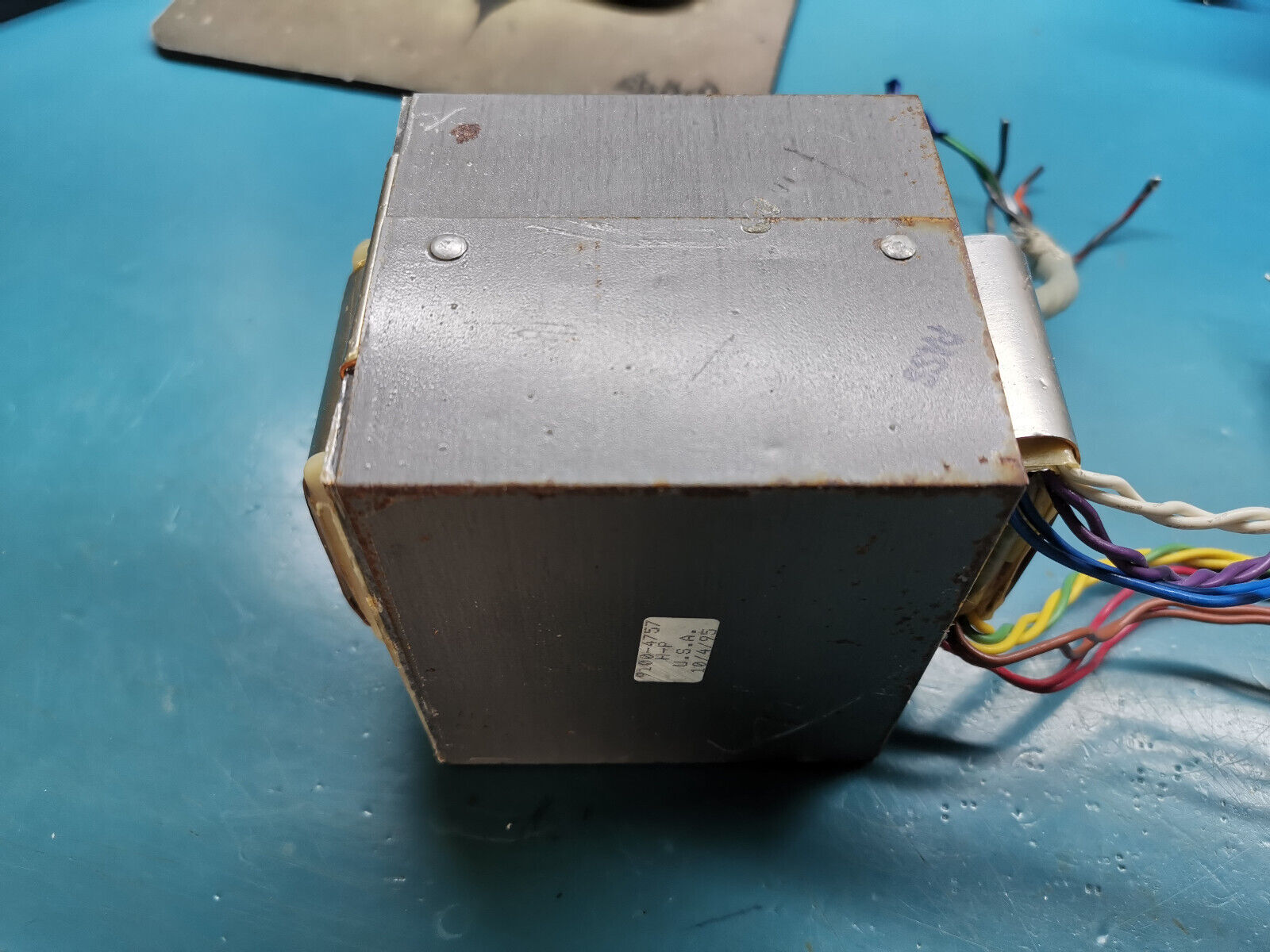

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_dfb05a05-111b-46d5-bd84-779405bd275b.jpg?v=1684154570&width=1445)

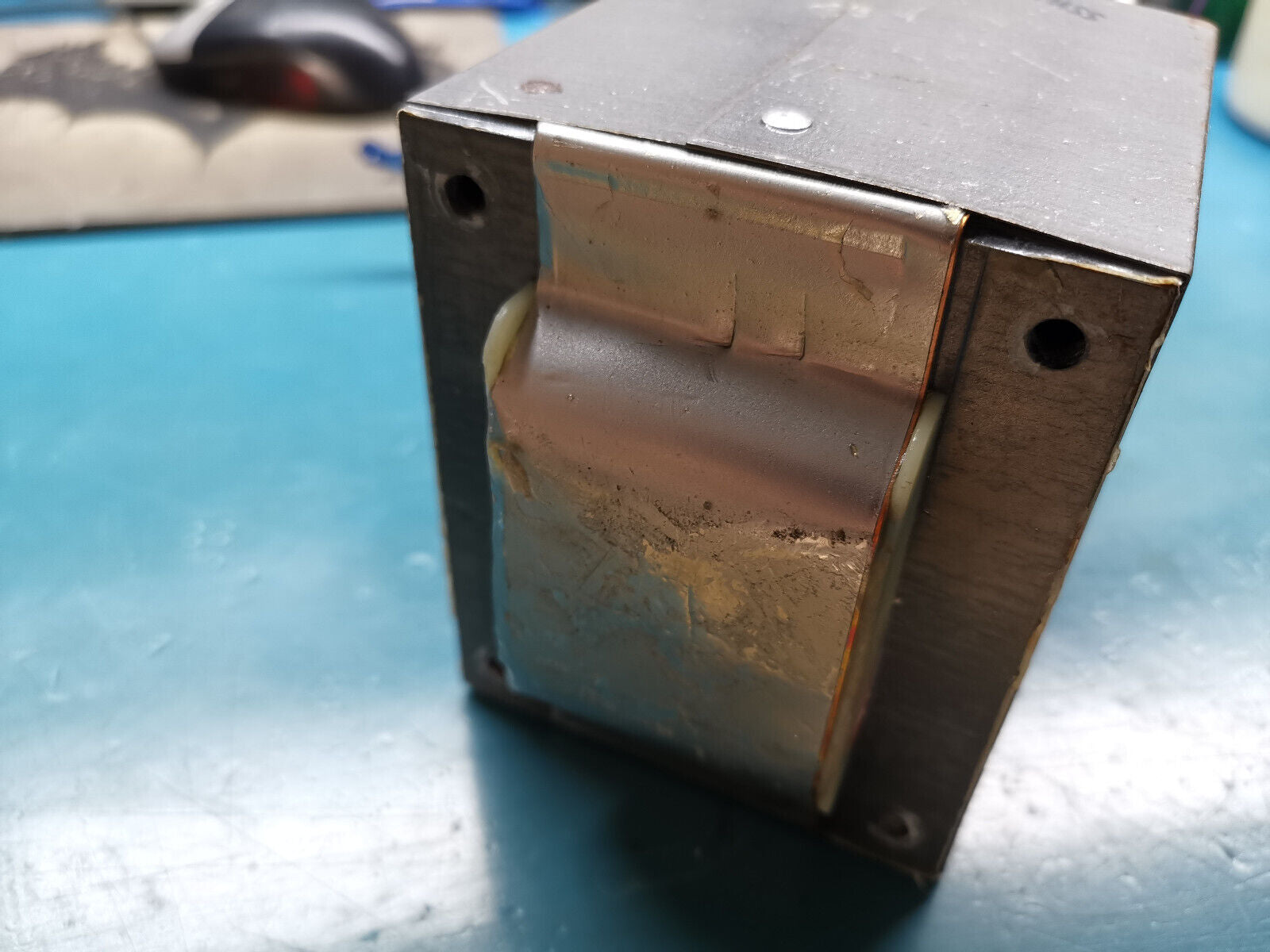

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_41576e0b-d51e-4a53-94a5-30d22842bc6a.jpg?v=1684154570&width=1445)

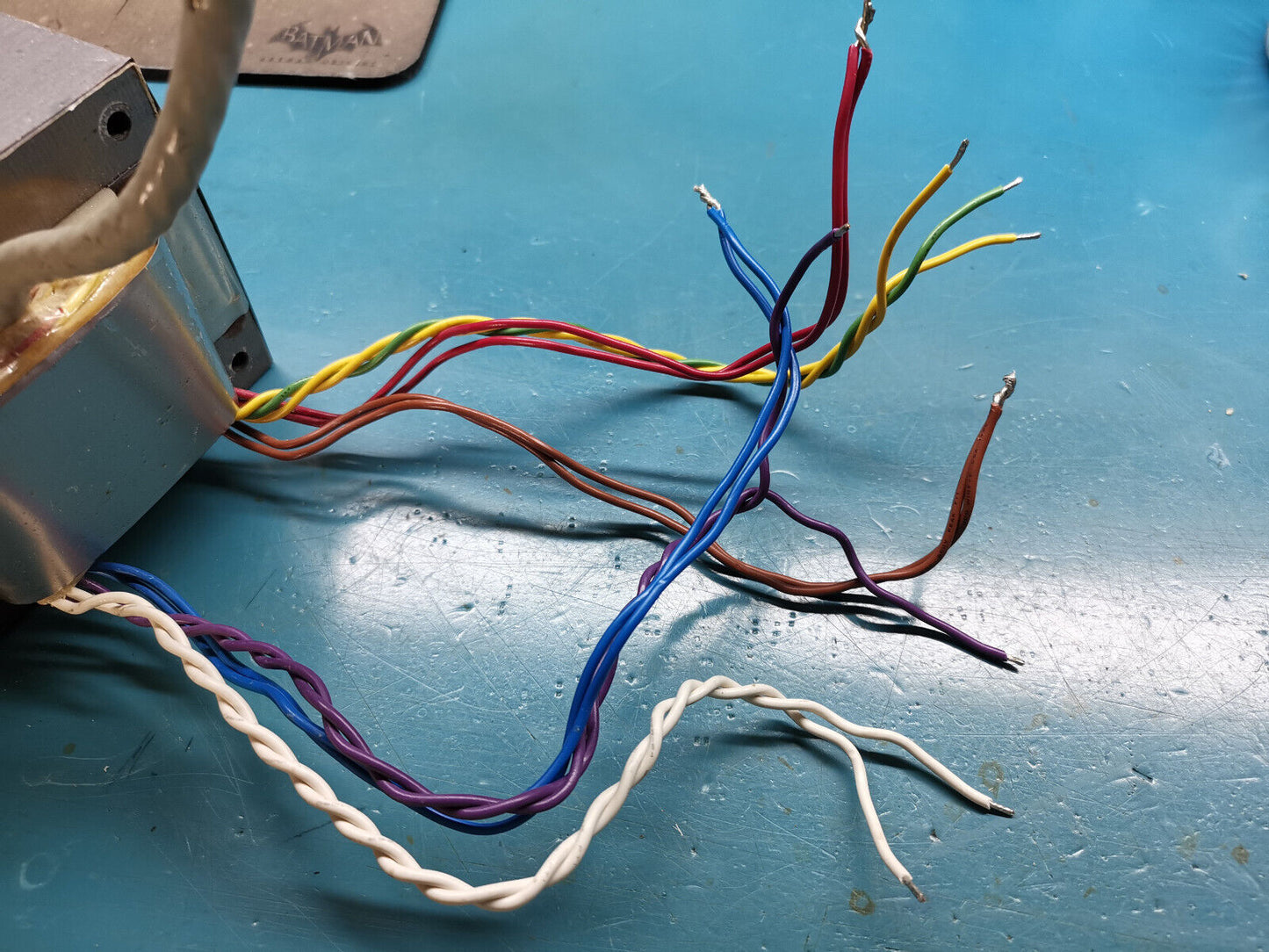

![AC Mains Power Transformer 240v AC In 17v 0 17v 2A 8v 0 8v 5A 25v 1A 40v 300mA](http://www.mjtronix.co.uk/cdn/shop/products/57_85f1a3d2-e530-420e-bfc2-1b6c12e7db85.jpg?v=1684154570&width=1445)
