2pcs 50 Ohms Signal Isolation Matching Transformer 2:1:1 Or 1:1

2pcs 50 Ohms Signal Isolation Matching Transformer 2:1:1 Or 1:1

Regular price £10.37 GBP
Regular price Sale price £10.37 GBP
Sale Sold out

Brand: Unbranded

Mounting Style: Through-Hole

Type: Audio Coupling Transformer

Number of Sockets: 1

Number of Phases: 1

Conversion Function: Step-down

Turns Ratio: 2:01:01

Signal isolation matching Transformer used for impedance matching from a large military antenna amplifier. not sure of the power rating or the frequency range.

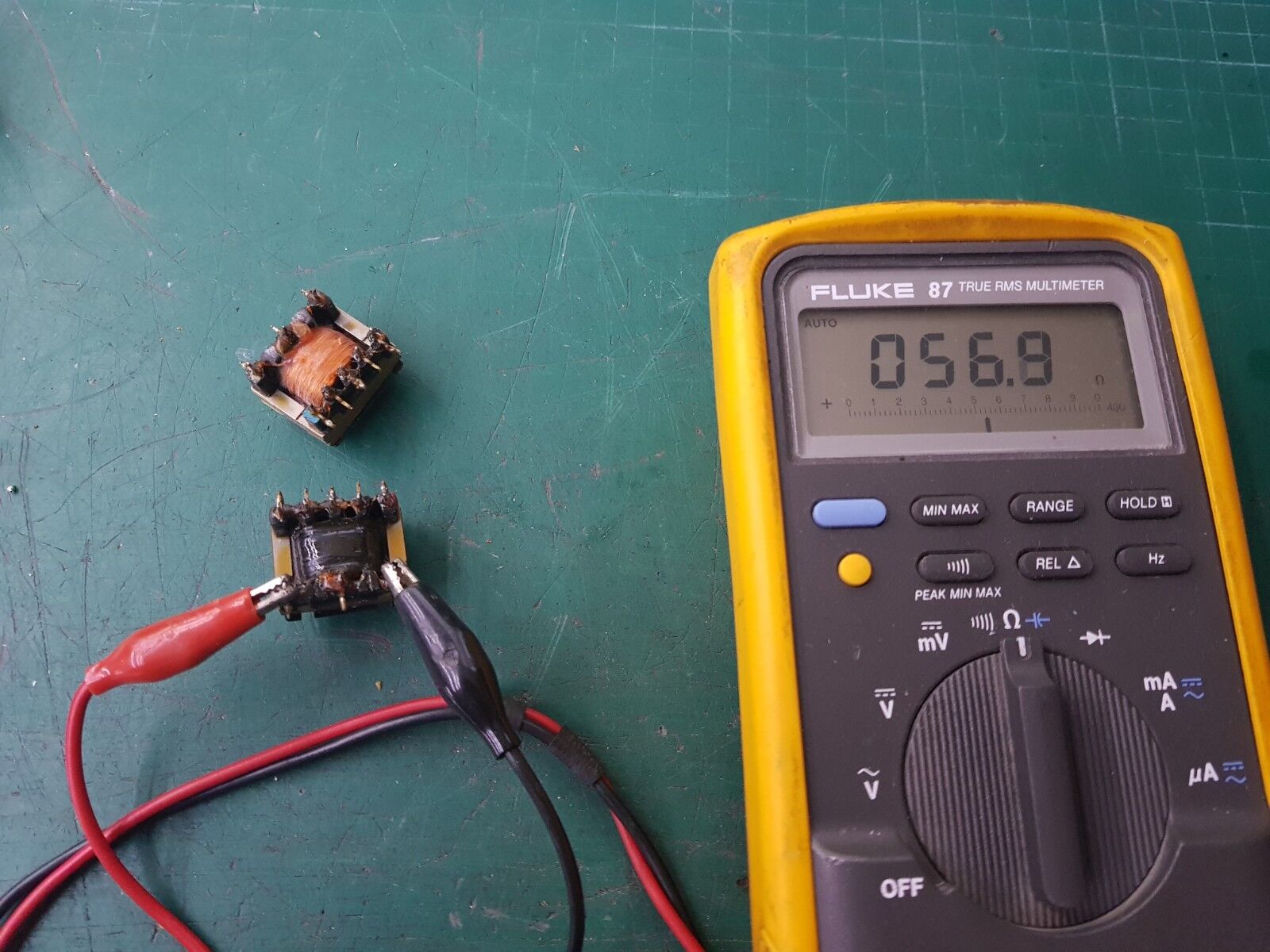

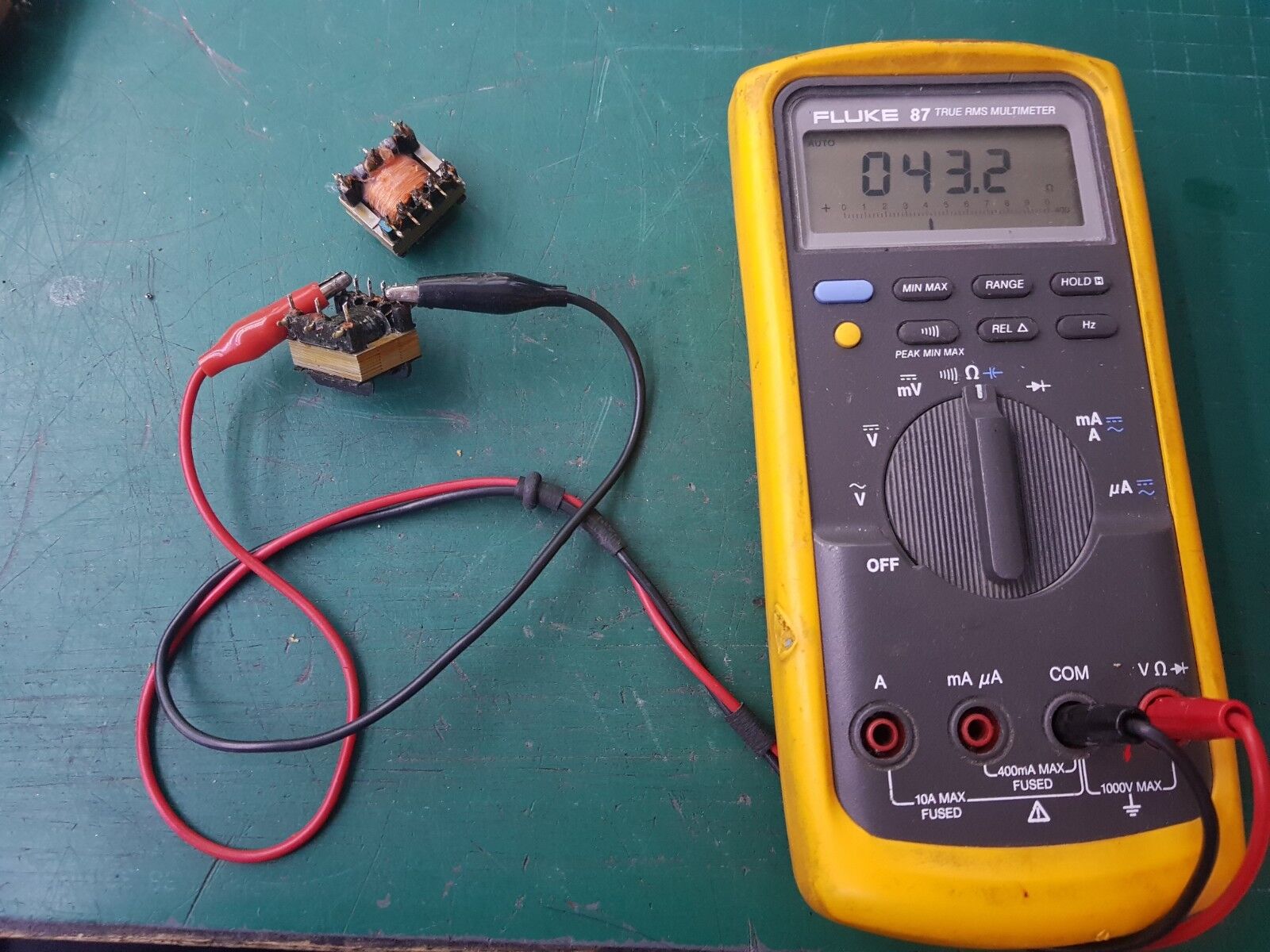

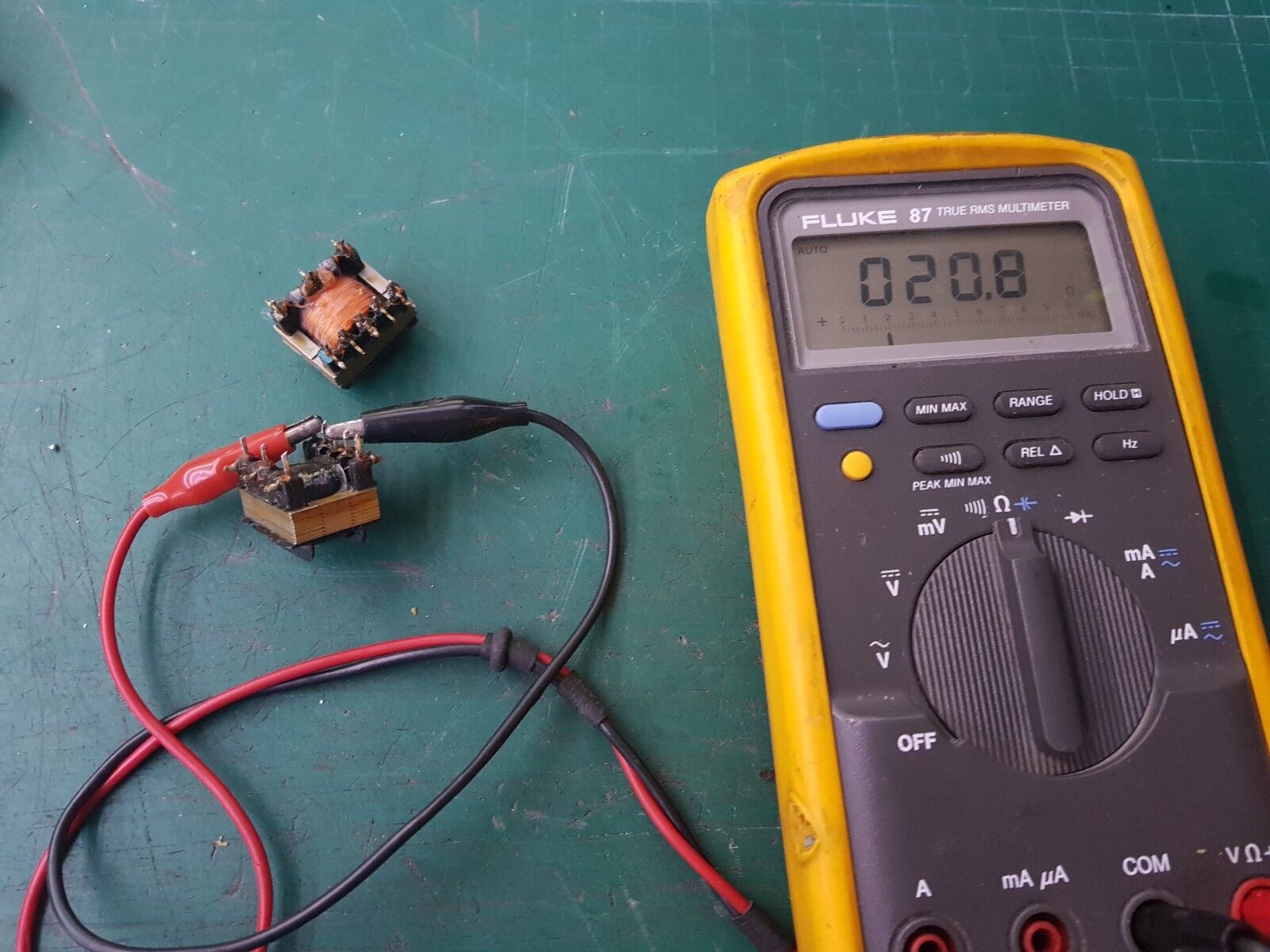

Measuring with a fluke meter the primary is 55 to 58 ohm and the secondary is a centre tap 2 x 20 to 25 ohms. the primary is only one tap. The rest of the pins are only for soldering support, also on the primary side the middle pin seem to be a grounding plate .

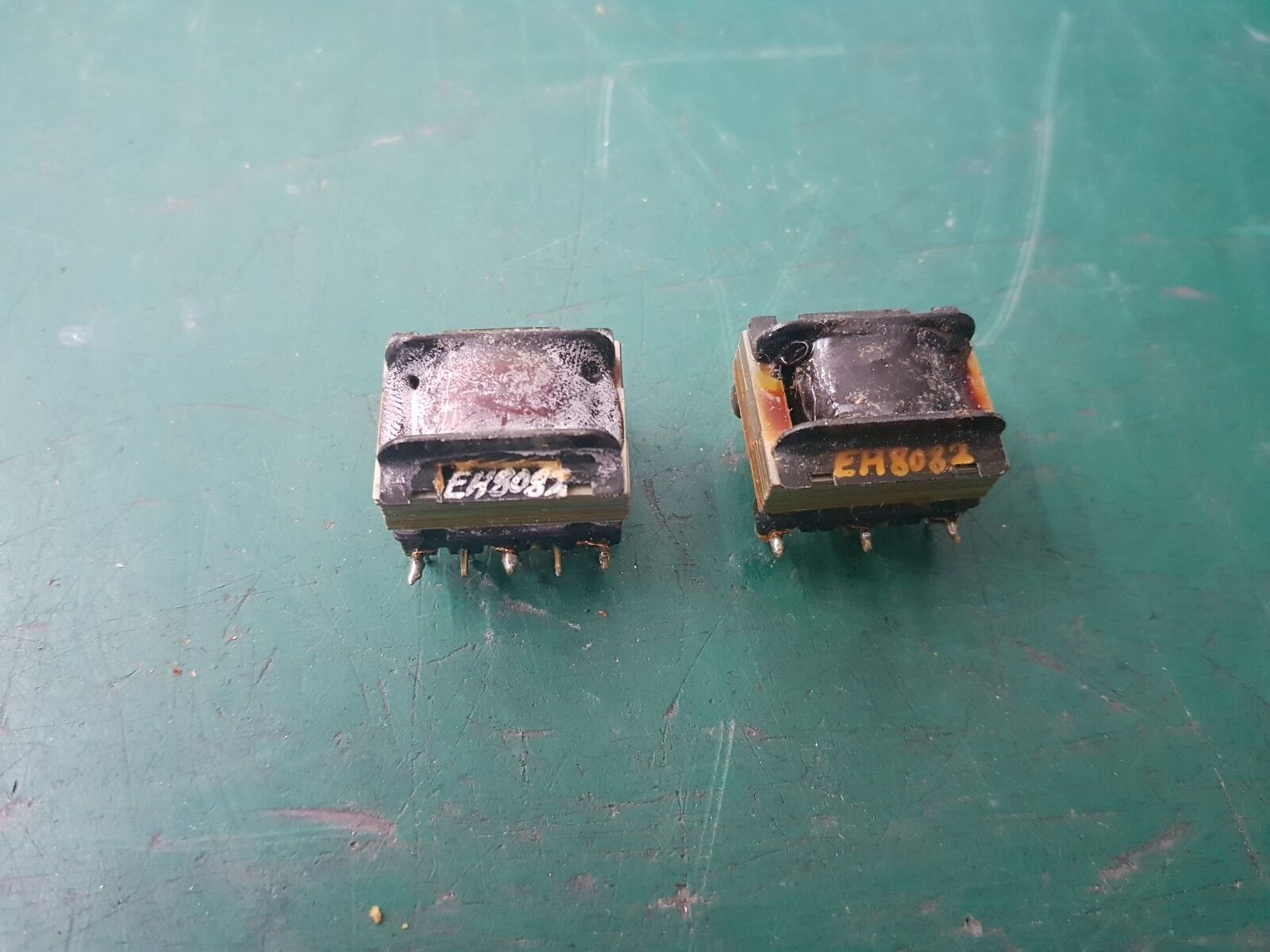

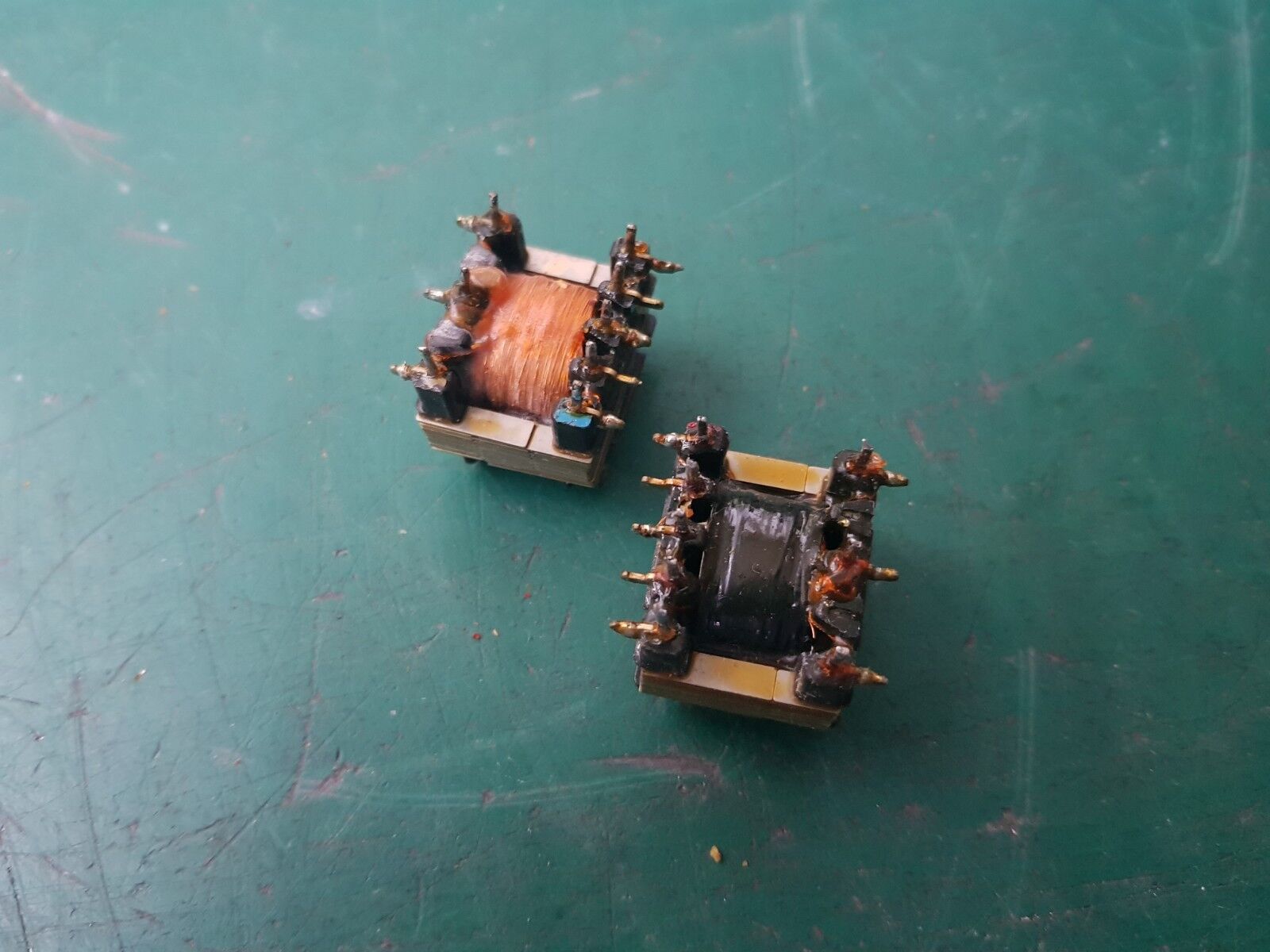

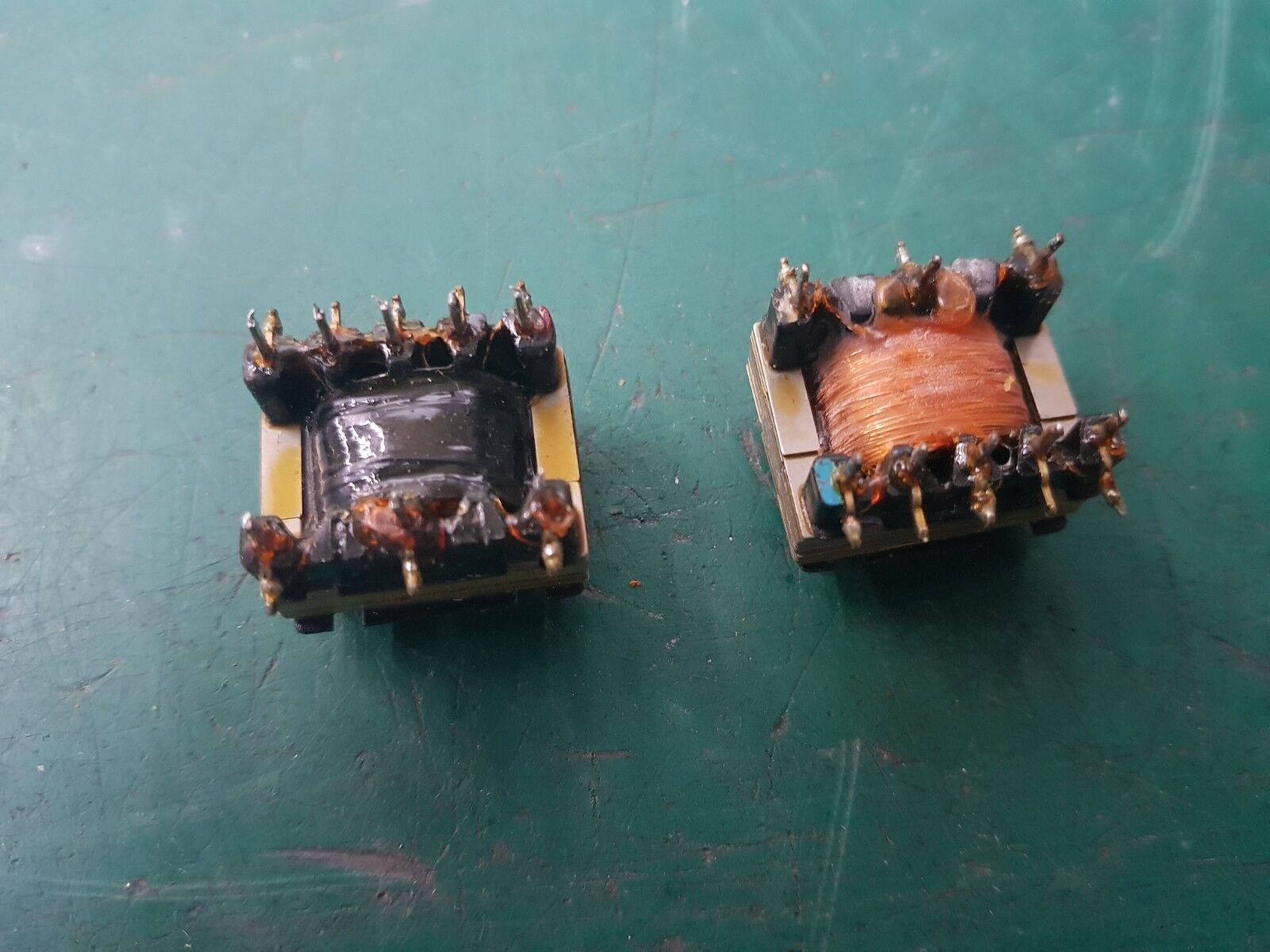

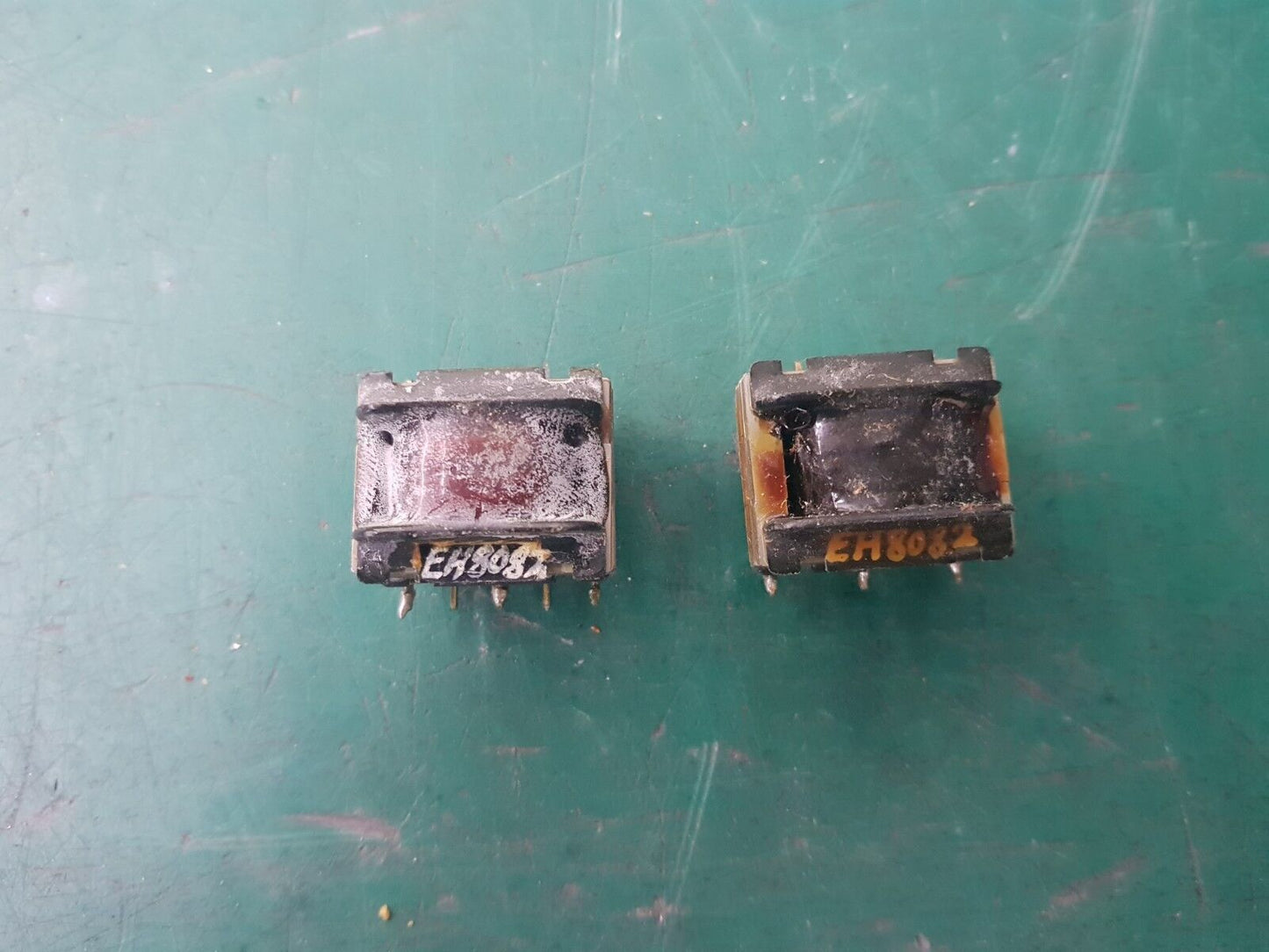

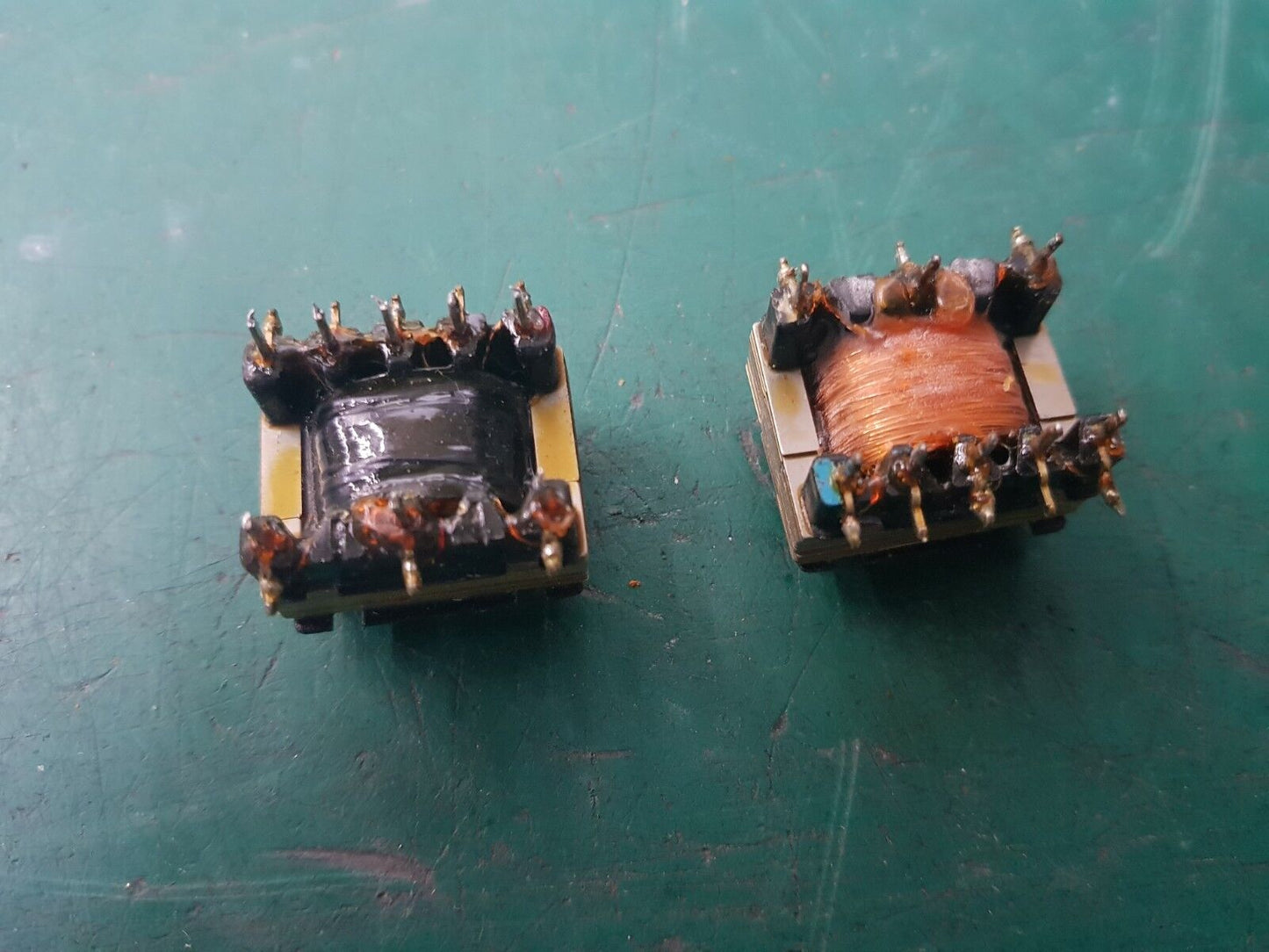

Please note the colour of the transformer might be different from the pictures. All are potted or covered. Some might be missing one support pin.

Meter is not included in the sale.
